Vibrating Fluid Bed For Drying Pellet And Granule

  • Vibrating Fluid Bed For Drying Pellet And Granule
  • Vibrating Fluid Bed For Drying Pellet And Granule
  • Vibrating Fluid Bed For Drying Pellet And Granule
  • Vibrating Fluid Bed For Drying Pellet And Granule

Vibrating Fluid Bed For Drying Pellet And Granule

    Min. Order: 1 Set/Sets
    Transportation: Ocean
    Port: Shanghai

Product Description

Vibrating Fluid Bed Dryer

Description:
Vibrating fluidized bed dryer is a new technology developed on the basis of static fluidized bed. Mechanical vibration is added on the fluidized bed. Wet material particles enter the air stream and form a fluidized bed. The material is ejected due to exciting force. Vibrations of an air distributing plate incite the fluidization of material particles and the movement of material in the fluidized bed. The fluidized material contacts the hot air and at the same time carries on heat and mass transfer. The dried product is discharged through the discharge port.

Continuous Fluid Bed Dryer1

Work Principle:

The material has been feed into the machine, under the dual function of the vibration and air flow, the material move along the fluidized bed as throwing forward continuously. Hot air upward through the fluidized bed and wet materials from the heat after the exchange, after the cyclone dust emissions from dry materials from discharging from the mouth.

Continuous Fluid Bed Dryer3

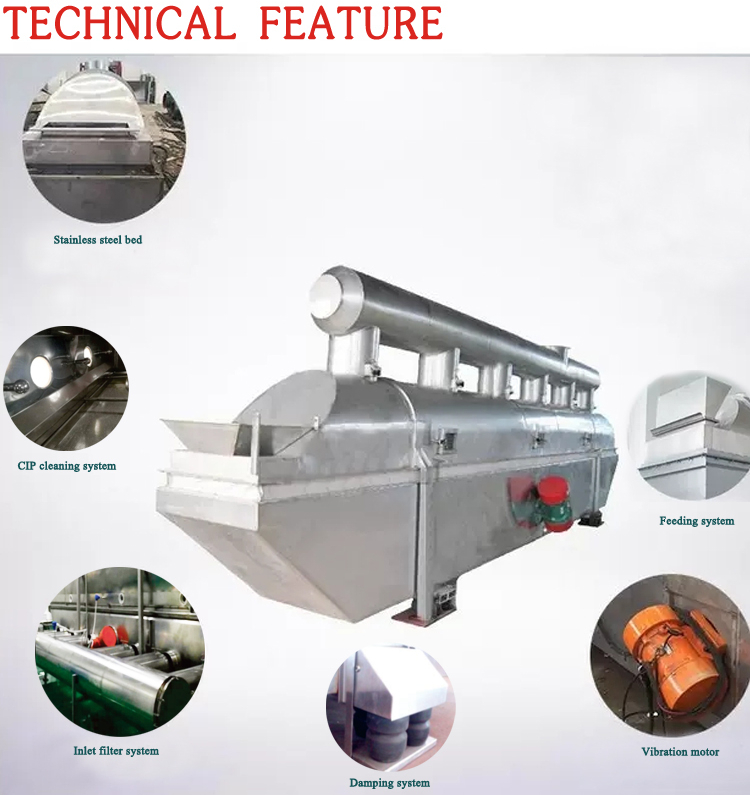

Product Characteristics:

♦Materials have been heated evenly, full exchanged the heat. It is a process of large intensity of drying.
♦ The vibration motor drive has been used, with the advantages of smooth operation, easy maintenance, low noise, long life
♦ It flows stability, with no dead angle and blown through phenomenon.
♦ It is adjustable, wide adaptation. The moving speed of the bed depth and the material in the dryer can achieve stepless adjustment by the changes of the amplitude.
♦ It makes small damage to the surface of the material, can be used for the drying of the fragile materials and will not affect the work results if the particles are irregular.
♦ It uses full closed structure; effectively prevent the cross-contamination of the materials and air, clean operation environment.
♦ Materials drying time is basic equality, residence time is short, bed depth is small, usually 2 ~ 5cm.

Continuous Fluid Bed Dryer4
Material to be dried:
♦ Petrochemical industry
I> Inorganic: borax, boric acid, glass fibers, ammonium hydrogen fluoride, potassium permanganate, sodium perborate, ammonium thiocyanate, sodium thiocyanate, cobalt sulfate, nickel sulfate, zinc sulfate heptahydrate, ammonium chloride, calcium, strontium chloride, sodium chlorate, strontium, copper sulfate pentahydrate, sodium chlorite, sodium sulfite, ammonium nitrate, calcium nitrate, sodium nitrate, potassium bromide, sodium bromide, sodium sulfate, sodium salt
II> Organics: oxalic acid, succinic acid, hydroquinone, p-nitrobenzoic acid, fumaric acid, pentaerythritol, resorcinol, catechol, calcium hypochlorite, sodium silicate, GDL, sodium gluconate, thiourea, sorbitol, dicyandiamide, iminodiacetonitrile, itaconic acid III> Fertilizer: potassium dihydrogen phosphate, calcium hydrogen phosphate, Monoammonium Phosphate, ammonium sulfate, magnesium sulfate heptahydrate
IV> Pesticides: Imidacloprid granules, granules glyphosate
V> Polymer: High-absorbent resin, a polystyrene resin, sodium polyacrylate
VI> Chemicals: washing powder
VII> Chemical additives: methyl cellulose, polyacrylamide, hydroxyethyl cellulose

♦ Food and beverage industry:L-arabinose, acesulfame, erythritol, trehalose, caramel, tartaric acid, coffee, bread crumbs, milk powder, citric acid, potassium citrate, sodium citrate , maltitol, xylose, xylitol, Ru refined, sugar, potassium sorbate, salt, sodium saccharin, monosodium glutamate, sodium iso-VC,
♦ Pharmaceutical medical industry:honeysuckle, paracetamol, taurine, vitamin C
♦ Animal husbandry and fishery industry: canola ,seeds

Continuous Fluid Bed Dryer2
Application Range:
It is can be used for drying or cooling process, for the uneasily fluidized products because of large particles or irregular particles, or that require a lower fluidization rate in order to maintain the integrity of the particles and the drying of easy-to-adhesive, temperature-sensitive products and the surface water removal of the crystal water-containing materials.

Technical Parameter:
Size
Model
A B C D E F Weight(kg)
ZLG3×0.30 3000 300 1350 900 430 1650 1250
ZLG4.5×0.60 4500 600 1650 950 430 1700 1670
ZLG6×0.60 6000 600 1700 1000 500 1700 2410
ZLG6×0.75 6000 750 1850 1000 600 1850 2840
ZLG6×0.9 6000 900 2000 1000 600 1850 3160
ZLG7.5×0.75 7500 750 2000 1000 600 1850 3600
ZLG7.5×0.9 7500 900 2100 1000 600 1850 4140
ZLG7.5×1.2 7500 1200 2500 1150 800 2050 5190
Model Area of fluidized-bed(M2) Temperature of inlet air (oC) Temperature of outlet
(oC)
Capacity to vapor moisture (kg) Vibration motor
Model Power Kw
ZLG3×0.30 0.9 70-140 40-70 20-35 ZDS31-6 0.8×2
ZLG4.5×0.60 2.7 70-140 40-70 70-90 ZDS32-6 1.1×2
ZLG6×0.60 3.6 70-140 40-70 100-130 ZDS41-6 1.5×2
ZLG6×0.75 4.5 70-140 40-70 120-140 ZDS42-6 2.2×2
ZLG6×0.9 5.4 70-140 40-70 140-170 ZDS42-6 2.2×2
ZLG7.5×0.75 5.625 70-140 40-70 150-180 ZDS51-6 3.0×2
ZLG7.5×0.9 6.75 70-140 40-70 160-210 ZDS51-6 3.0×2
ZLG7.5×1.2 9 70-140 40-70 200-260 ZDS51-6 3.0×2
